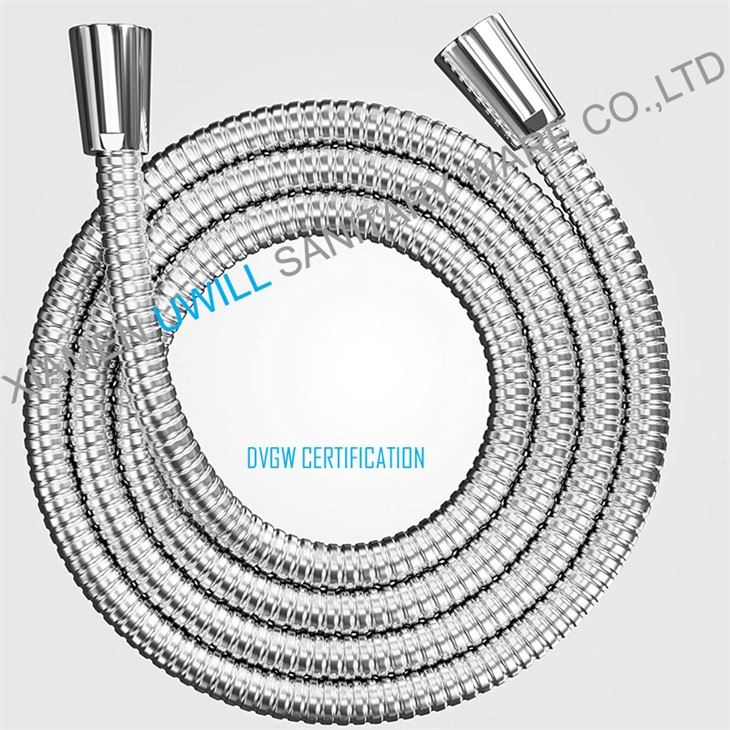

1.Double lock stainless hlau KTW W270 muab ntawv pov thawj da dej hose technical parameter raws li hauv qab rooj qhia.
| Yam khoom Number: | S3116 COJ |
| Khoom npe: | KTW W270 hlau da dej hose |
| Feature: | 304 stainless hlau sab nrauv hose raw khoom; KTW W270 certification; Chrome hlau |
| Sab nraud txoj kab uas hla: | 14mm ib |
| Inner Diameter: | 7mm ib |
| Txoj kab uas hla: | 6.5mm ib |
| Outer hose: | 304 stainless hlau |
| Inner hose: | BWGL certify PEX |
| Ntev: | 1.6m ntev |
| Qhov hnyav: | 200 g los yog li ntawd |
| Tus nqi dej ntws: | Ntau tshaj 25.2L / feeb ntawm 3 bar dej siab |
| Ua haujlwm kub: | tsawg dua 70 degree |
| Ua haujlwm siab: | 0-8 bar |
| Ntawv pov thawj: | DVGW |
2.Qhov nthuav dav kev kos duab ntawm KTW W270 hlau da dej hose
| BOM no. | Ntu no. | Cheebtsam | Khoom siv | Qauv nab npawb raws li daim ntawv pov thawj | Xim | Qty | Tiv tauj nrog dej | Chaw tsim tshuaj paus | daim ntawv pov thawj | siv unitl |
| 1 | 2024031301 | knurled conical txiv ntseej | CU | N/A | Chrome | 1 | TSIS MUAJ | Xiamen Caixin | N/A | |
| 2 | 212030 | Gasket | EPDM | dub | 2 | YOG | Xiamen Aslin | K-329862-20-A-Ko/sg | 2025.6.24 | |
| 3 | 121038 | anti-twist tivthaiv | pom+sus304+EPDM | N/A | xwm | 1 | YOG | Polyplastics Co., Ltd | KEV-22-DW-10293 | 2027.7.11 |
| 4 | 190023 | lub tes tsho kauv | PA | N/A | xwm | 2 | TSIS MUAJ | Xiamen Haohui | N/A | |
| 5 | 0373010 | hniav tes tsho | SUS 304 | N/A | chrome | 2 | TSIS MUAJ | Xiamen Xinherun | N/A | |
| 6 | 1410150 | ob chav xauv stainless hlau hose lub cev | SUS 405 | N/A | polished | 1 | TSIS MUAJ | Ningbo Ruilong | N/A | |
| 7 | 140094 | lub cev | PEX | xwm | 1 | YOG | WEIHAI LIANQIAO | KEV-21-DW-10119-1 | 2027.1.12 | |
| 8 | 140009 | sab hauv plug | POM | N/A | xwm | 1 | YOG | Polyplastics Co., Ltd | KEV-22-DW-10293 | 2027.7.11 |
| 9 | 0360010-1 | knurled noob | HPB57-3 | chrome | 1 | Tsis muaj | Xiamen Caixin |
3.The KTW W270 hlau da dej hose anti-twist siv
Kev tsim kho los tiv thaiv kev sib tw ntawm KTW W270 hlau da dej hose yog tsim los tiv thaiv lub hose los ntawm kev sib tw los yog kinking thaum siv, ua kom cov dej ntws zoo thiab yooj yim ntawm kev tuav.
Optimized Hla-Sectional Shape:Tus ntoo khaub lig-sectional zoo ntawm cov tub ntxhais yuav ua tau zoo kom txo tau qhov kev tiv thaiv ntawm dabtsi yog khoov thiab twisting. Qhov no pab ua kom cov dej ntws zoo thiab yooj yim ntawm kev tuav thaum siv.
Integrated Design:Lub anti-twist core feem ntau yog muab tso rau hauv kev tsim kho ntawm lub hose, khiav raws nws tag nrho ntev. Qhov no ua kom zoo ib yam los tiv thaiv kev sib tw thoob plaws hauv lub hose thiab pab tswj nws qhov yooj yim thiab ua haujlwm ntev lub sijhawm.
Compatibility nrog Fittings:Kev tsim ntawm cov tub ntxhais tiv thaiv kev sib tw yog sib xws nrog cov fittings ntawm ob qho kawg ntawm lub hose, tso cai rau kev yooj yim installation thiab ruaj ntseg kev sib txuas rau lub taub hau da dej thiab cov kav dej.
4.The KTW W270 hlau da dej hose ntawv pov thawj
Daim ntawv pov thawj KTW W270 yog tus qauv tsim nyob rau hauv lub teb chaws Yelemees rau cov ntaub ntawv thiab cov khoom uas tuaj rau hauv cov dej haus. Tshwj xeeb, KTW W270 daim ntawv pov thawj ua kom ntseeg tau tias cov khoom lag luam ua raws li cov cai huv huv thiab tsis muaj kev cuam tshuam rau qhov zoo lossis kev nyab xeeb ntawm cov dej haus.
Rau cov hlau da dej hoses, KTW W270 ntawv pov thawj qhia tias lub hose tau raug kuaj thiab pom zoo raws li cov lus qhia tau teev tseg los ntawm German Federal Environmental Agency (UBA) thiab German Environment Ministry (BMU). Cov kev ntsuam xyuas no feem ntau ntsuas cov khoom xws li tshuaj lom neeg tsiv teb tsaws, tsw, saj, thiab microbiological kev nyab xeeb kom ntseeg tau tias lub hose tsis kis los yog cuam tshuam cov dej haus zoo.
